Automatic Magnesium oxide board production line
MGO Machine Parameter | ||
Machine Capacity | Now can up to 2000pcs per shift ,we still update our technique | |
Machine advantage | With lots of machine patent | |
Finished board thickness range | 3-20mm | |
Finished board type | Sanding mgo board and normal mgo board | |
degree of automation | Full automatic machine and semi-automatic machine ,can customized | |
Raw material | MGO; Mgcl2 /magnesium sulfate ; perlite; saw dust, etc. | |
MGO Production line Application
modern construction mgo board production line machine factory
This whole production line can used to produce MGO door board, MGO board, Sanding mgo board,fireproof board,
cement board, lightweight wall panel.It is the multi-functional production line
for many kinds of modern construction materials, is well received by clients who focus on green environment-friendly
buildings and energy-saving constructions.

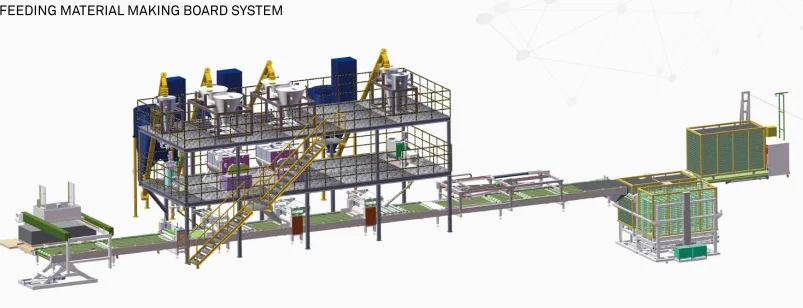

Magnesium oxide board producing flow chart
modern construction mgo board production line machine factory
1:Feeding mgo board material system with full Automatic
With this system All the material can be mixed as certain proportion,high effective ,also the most important thing is our engineercan help you adjust the material proportion according to the range of different factor,which is have most relation with the finalboard quality
2:MGO board forming machine
Multifunction board making machine is the main equipment for the wet extrusion molding for high standard decorate board,it is also the prior choice for the high-grade plate manufacturers in China.After research development and technology accumulation for years,the machine with the advantage of high precision,large capacity,easy operation,good practicality and stable property,
etc.It is widely used for Interior wall decorating plate,out wall heated board,sanding veneer,Core board of fire door,fiber cement board,etc for construction and decorated material. magnesium oxide board production equipment
Model | MKZBJ1 | MKZBJ2 |
Power(KW) | 6.25 | 7.75 |
Max transmission speed(m/min) | 18 | 18 |
Layer | 2 | 6 |
Capacity(Hour) | 300 | 300 |
Equipment(m) | 28 | 38.5 |
3:Automatic loading/unloading machine
Automatic loading/unloading machine is the necessary machine for upper and bottom frame,stacking and curing.It adoptshydraulic upright balance lifting,with the function of automatic tally,automatic ferry,etc,and it replace the manual operate,greatlyreduce the labor intensity and improve the operating efficiency and product quality.With the advantage of easy operation,stableproperty and good security,etc. magnesium oxide board production equipment .
Model | Power(KW) | Loading(T) | Main Roller Speed(m/min) |
Shift Type | 8 | 3.5 | 22 |
Separate Type | 4 | 3.5 | 22 |
4:Automatic demould and mould clean system
5:Automatic Suction Machine
6:Automatic cutting machine
Model | Power(KW) | Saw blade speed(r/min) | Cutting speed(pcs/min) |
MKDB | 3 | 5000 | 4.7 |

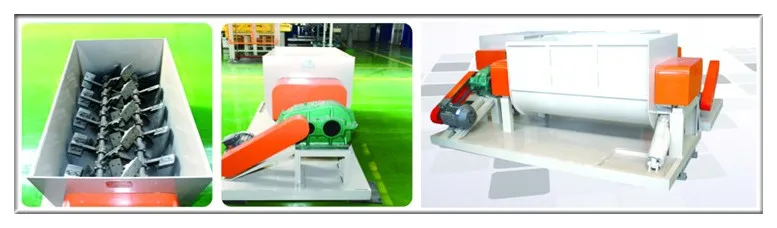

7:Main Material Mixer
Our company has main material mixer and sanding material mixer:
Model | Power(KW) | Ejection of compact volume(m3) | Spindle speed(r/min) |
Main material mixer | 9.7 | 0.4 | 36 |
Sanding material mixer | 6.5 | 0.2 | 46 |
8.Why Choose US ,Pls look at our machine detail
9:MGO making machine main Equipment parts brand
