gypsum board paper faced production line

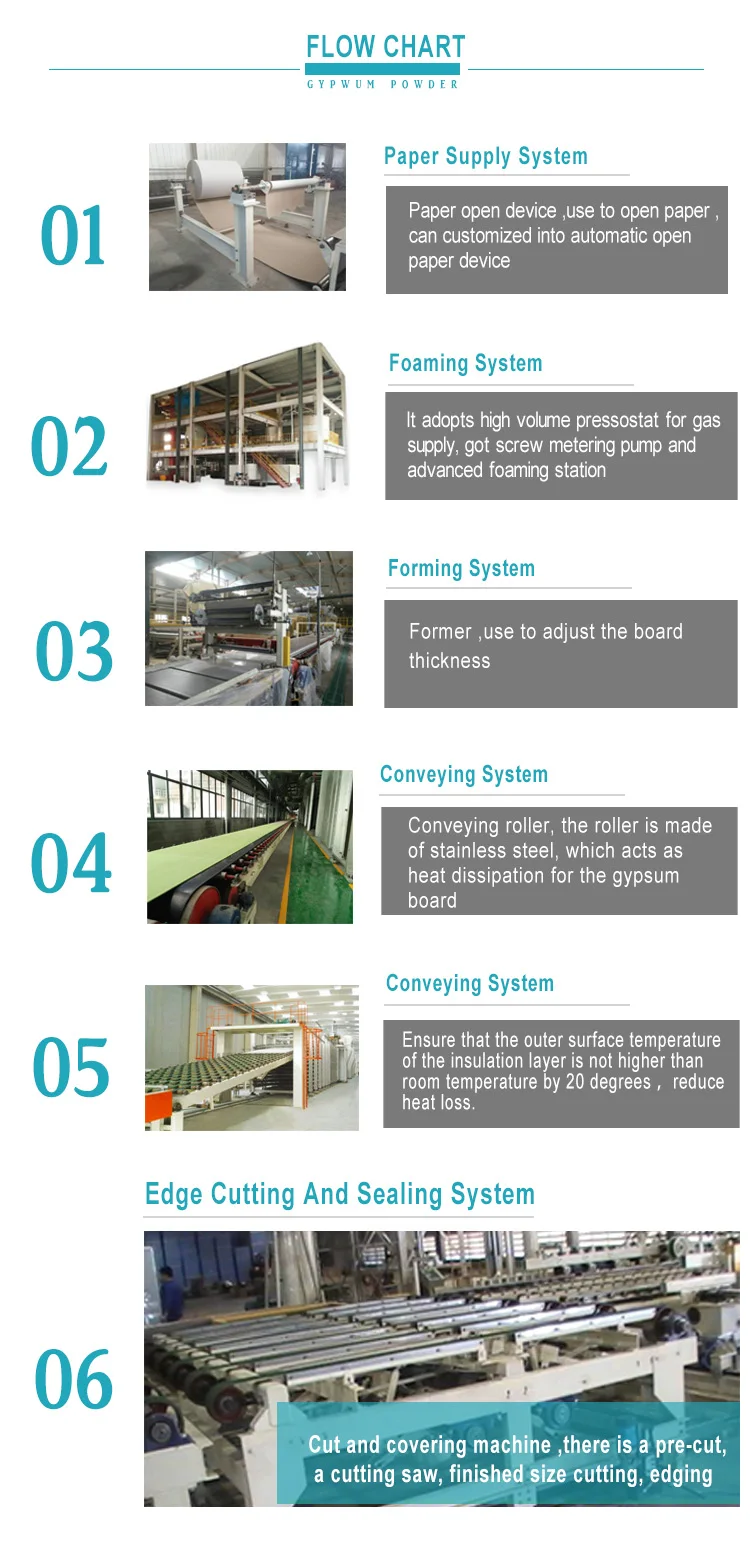

Gypsum drywall panel/ board production line is a kind of light weight board decorating material with many specifications, whose main raw materials are calcined gypsum(natural gypsum, desulfurized gypsum, Phosphor gypsum)and card board( face paper), adding certain percentage of water, starch additives and foaming agent, after mixing, forming, cutting, drying, shearing and sealing procedures etc. |
It got the features as light weight fire-proof, heat insulation, vibration-proof. simple to produce, easy of application, elegant decoration effect etc.
|

gypsum board paper faced production line
Swipe or scroll horizontally to view all columns.
| Gypsum board production line | ||||||
| Annual production(m2) | Plant area(m2) | Drying method | Total installed capacity | Production linespeed | Required workers | Electrical configuration |
| (m/min) | ||||||
| 1.5 million | 60m×26m | Thermal oil | 116kw | 3 | 8 | Siemens |
| 2million | 70m×26m | Thermal oil | 127kw | 4.2 | 10 | Siemens |
| 3million | 84m×30m | Thermal oil | 166kw | 6.25 | 11 | Siemens |
| 4million | 110m×30m | Thermaloil/Hot stove | 210kw | 8 | 11 | Siemens |
| 5million | 112m×30m | Thermaloil/Hot stove | 234kw | 10.5 | 11 | Siemens |
| 6million | 122m×30m | Thermaloil/Hot stove | 240kw | 12.5 | 11 | Siemens |
| 8million | 136m×30m | Thermaloil/Hot stove | 349kw | 16.5 | 11 | Siemens |
| 10million | 150m×30m | Thermaloil/Hot stove | 467kw | 20 | 12 | Siemens |
| 12million | 172m×30m | Thermaloil/Hot stove | 488kw | 24 | 13 | Siemens |
| 15million | 204m×36m | Thermaloil/Hot stove | 578kw | 31 | 15 | Siemens |
| 20million | 240m×40m | Thermaloil/Hot stove | 778kw | 40 | 15 | Siemens |
| Product specifications: length 2400—3000mm width 1200—1220mm thickness 8—15mm | ||||||


gypsum board paper faced production line
Q:Why are many pictures on the Internet the same as your company? |
A:Because our company has been specialized in plastic machinery since 1980, after years of exploration and continuous research, the appearance of the equipment and the ease of use have led the Chinese plastic machinery industry,it is inevitable to be stolen by competitors, but our core technology is not something that everyone can learn. |
| Q:Why I choose your company? |
A:a) We are the Leading foam machine Manufacturer in China. |
| b) We have made foam machine since 1980 with strong experience and advanced technics |
| c) Best Quality & Best Service with Competitive price. |
| d) 100% inspection Before Shipment, and got CE certificate. |
| e) We have Professional technical team, supply 24 hours service. |
